- Supported Software: 1, Read diagnostic trouble codes. 2, Clear trouble codes and turn off the MIL. 3, Display current sensor data. Software Support Platform: Windows XP, Windows 7-8. Compatible Software Window: ScanMaster ScanTool, net, PCMSCAN, etc.
- Supported protocols: 1, SAE J1850 PWM (41.6Kbaud). 2, SAE J1850 VPW (10.4Kbaud). 3, ISO9141-2 (5 baud init, 10.4 Kbaud). 4, ISO14230-4 KWP (5 baud init, 10.4 Kbaud). 5, ISO14230-4 KWP (fast init, 10.4 Kbaud). 6, ISO15765-4 CAN (11bit ID, 500 Kbaud). 7, ISO15765-4 CAN (29bit ID, 500 Kbaud). 8, ISO15765-4 CAN (11bit ID, 250 Kbaud). 9, ISO15765-4 CAN (29bit ID, 250 Kbaud).

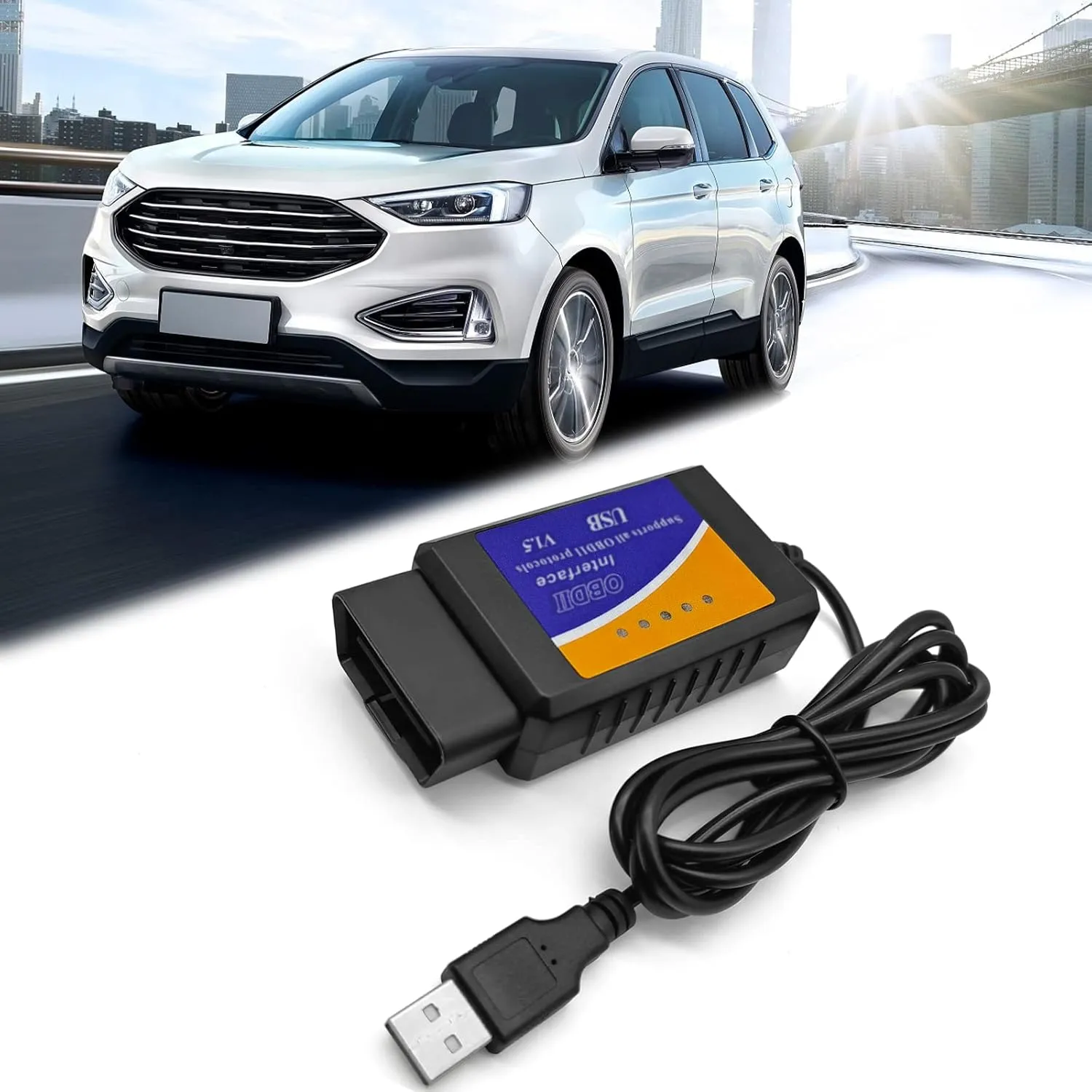

- Function: OBDII USB V1.5 Scanner for Multi-brands, Universal diagnostic cable supports all OBD-II protocols and is dispatched with a number of compatible programs. The output protocol (connection to laptop) is USB. Allows you to use your PC and a hardware interface to get the information from your car's computer.
- Basic Functions: usb connector can read and delete fault code, view data flow and check I. The car code reader also helps you troubleshoot problems, turn off engine lights, reset monitors, and pass smoke checks.
- Easy to Install: 1, Simply extract the files into a folder on your computer's hard drive, and you're ready to go. 2, To uninstall the program, simply delete the entire contents of the folder where the program resides.
OBDII USB V1.5 Scanner for Multi-brands CAN-BUS, used to read diagnostic trouble codes, which supports all OBD2 Protocol works on Windows, both generic and manufacturer-specific, and display your meaning, over 3000 generic code definitions in the database.
1. Read diagnostic trouble codes
2. Clear trouble codes and turn off the MIL
3. Display current sensor data
